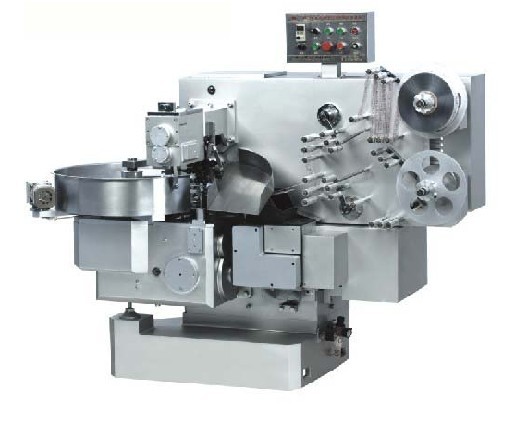

Double Twist Candy Wrapping Machine
clicks:803    update:2011/7/13







Specifications:

For candies twist wrapping purpose.
Principal Features:
1.Saving of wrapping material by "no product-no film" configuration.
2.Speed be adjusted by frequency converter.
3.Air assisted film feed system
4.Dish feeding assisted by four independent brush motor units.
5.Double film feed reel holder for inner wrap or speedy change over of reels.
6.All electrical and electronic elements are integrated in the machine.
7.Excellent accessibility for operation and maintenance.
8.Vibratory Feeding Unit by option.

Technical Specification:
Output: Up to 500 pcs/min
Product Length: 11-45mm (0.44-1.77in)
Product Width: 11-25mm (0.44-1in)
Product Thickness: 500-2000mic.
Packing Material: Wax film, Cellophane, alminium/paper-coated
Voltage: 220V/50Hz, 1phase or per customer specification
Power Consumption: 2.5KW
Compressed Air Requirement: 0.75MPa
Shipment Packing Size: L2020 x W1100 x H1620mm; (In) L79.5 x W43.3 x H63.8
Machine Weight: 1200kg
