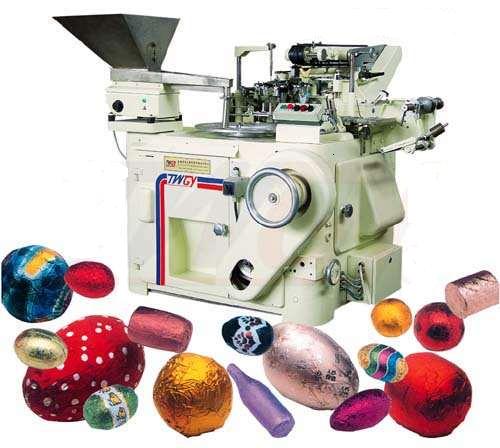

Chocolate ball Wrapping Machine
clicks:707    update:2011/7/20

Wrapping Style:

Introduction:
This machine is designed and manufactured according to the practice
experience and excellent technology.
The cam mechanism with gear is droved by a 3-phase asynchronous motor.
The wrapping disk with seven-position moves Intermittently
Shower distributes the lubrication automatically and the lubricant oil is in
a removable pallet.
Size changing and productlon starting are very rapid because the parts are
positioning accurately and it is no need to change or adust.Replacing
supply paper wheel is fast and easy.
All rafts whose contacts with the products are made of non-toxic materials
that is Suitsble to use in food.


TECHNICAL DATA

Wrapping Speed                 150 ~ 200 pieces per minume based on the
                                            different wrapping matenal.
Power Supply                      380VAC土 10% 50Hz
Total power consumption    approx  2kw
Noise level                           lens than 75dB
Standard coulour                 irory-white
Dimension                           1800x1700 x 1400 mm
Weight                                approx 1000kg
Warpping materials             aluminium
