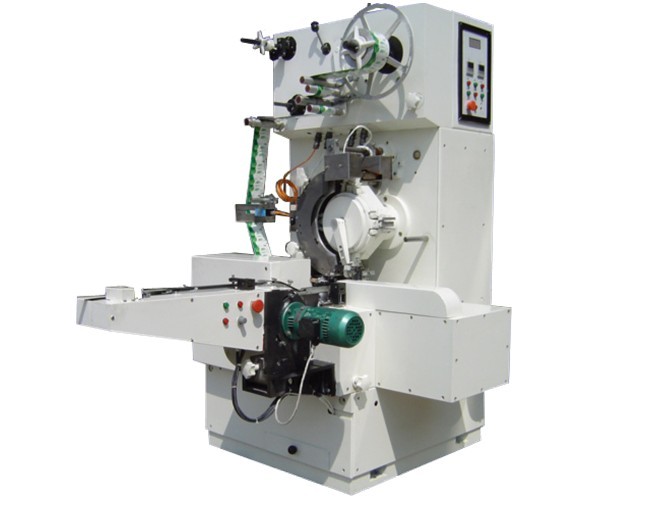

Stick wrapping machine

Stick wrapping machine

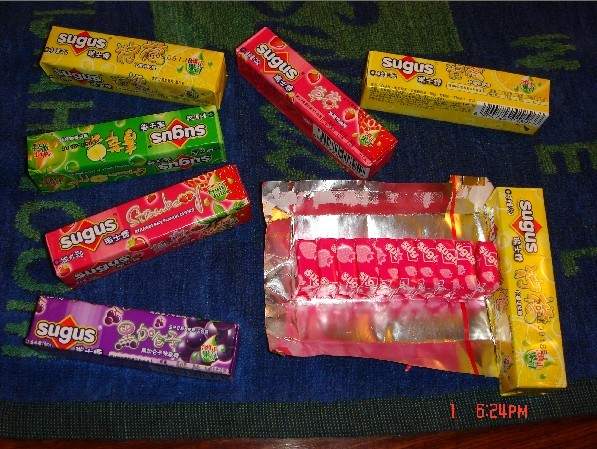

This stick wrapping machine is for the rectangular-shape candies such as bubble gum, chewy candy, etc. that have already been wrapped by former cut & wrap machine. This machine gets a heavy demand on the candy to be wrapped, thus it must be followed closely to our cut & wrap machine or those adopting European technique. The outer paper can be fed from the one reel printed. Photocell can track and lead the wrapping well according to photo marks on the wrapping paper. It can wrap 5-10 candy pieces in one stick pack on FLAT or on Edge on your choice.

Product Range:

Length:  60-90mm

Width:   13-40mm
Height:   6-18mm

Specification:

Output:  40-50 wraps/min depending on dimensions
Wrapping Speed Display
Fault Display
Counter
Centering Device
“No gum, no paper” Device
1 paper-reel for the feeding wrapping paper

The machine is ideally designed. Easy and fast assembling and disassembling of the components facilitate maintenance and cleaning. All electric and electronic parts guarantee optimum performance and safety.

Technical Data:
Capacity:  6.6KW
Power supply:380V 3 phases 50HZ
Weight:1500kg
Dimension:2045×1185×1795mm
Output:60-100 wraps/min depending on dimensions
Wrapping material: Heat-sealable paper, Aluminum foil or PE film

Remark:

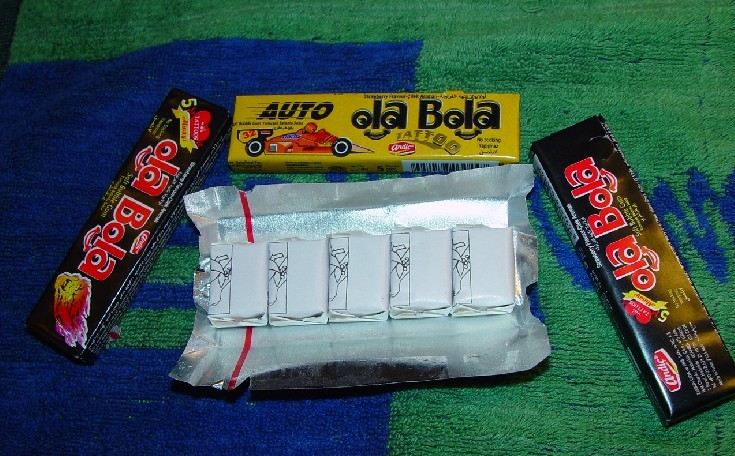

This is a stick wrapper which can wrap 5 pcs of BG into 1 stick with “FLAT” arrangement.  GF-ST-100/10EG: This is a stick wrapper which can wrap 10 pcs of BG into 1 stick with “ON EDGE” arrangement.
