TECHNICAL DESCRIPTION

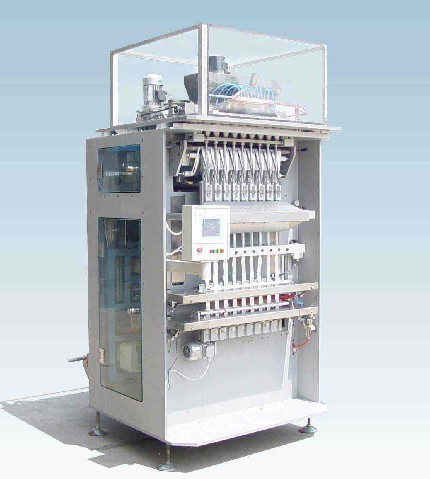

Vertical bagging machine type TY-VT-9/PD
This machine is a special design for the form-fill-seal of powder, granules or liquid medicine & food products into tubular sachet in pillow pack style (sealed in three sides). It is the fruitful achievement of the latest technology for its high efficiency, flexibility and reliability.
MAIN TECHNICAL DESCRIPTION
The cross sealing device is driven by AC servo and arc tooth-like synchro belt (HTD) to pull wrapping material.
Electric and pneumatic systems are applied to gain automatic circulation, which starts from pulling wrapping material, circular sealing, cross sealing and cut into independent small bags.
Self-lubricate plastic linear bearings are adopted to ensure stable rectilinear motion so that the structure of the machine is more compact.
This machine can be connected with cartoning machine.
DOSING
1.Measuring glass system for granules and powder
2.Auger systems for powder to ensure precise dosage
3.Pump / piston system for liquid
MAIN CHARACTERISTICS
1.Touch screen for control instruction and error display
2.Pneumatic systems for machine operation
3.Film spread, strain units and connection controller
4.Optical reader for color marks
5.Controller of vibrating feeder
6.Top loader
7.Paper cutting station
8.Forming station
9.Vertical sealing with thermo controller
10.Horizontal sealing with thermo controller
11.Easy-tear and horizontal cutting station
12.Air pressure monitor
THECNICAL DATA:
Range of sachet Size: Length: 40-150mm
Width: 28-90mm
(Usually 9 lanes for 28mm width)
Wrapping speed: up to 60 sachets per lane depend on sachet length and 3-9 lanes available depend on sachet width.
Control system: PLC, Touch screen, servo system, pneumatic system and integrative control.
Power supply: 380V, 50Hz, 3phases
Power consumption: 6kw
Pneumatic supply: compressed air at 2-7bar
Total air consumption: 650L/min
Max. diameter of film reel: 400mm
Max. Width of film reel: 615mm
Wrapping material: Thermosealable film with printing e.g. OPP/PET,
PET/ALU/PE etc.
Total weight: 1300kg
Overall dimension: 1570(length)×1270(width)×2670(height) (mm)
|
